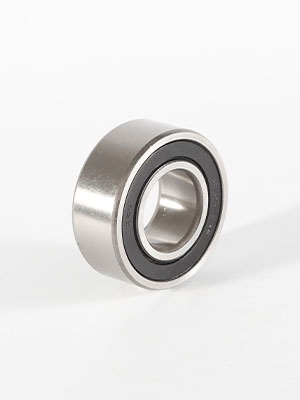

Double row angular contact ball bearings can withstand radial loads and axial loads acting in both directions, which could meet the configurations with high rigidity, bearing upsetting moment.
| Processing size range | Inside Φ 12 ~ Φ 50 mm, outside Φ Φ of 20 ~ 120 |
| Accuracy class | P0~P6 |
| Vibration level | ZV1 |
| Service temperature | -30~140℃ |
| Contact angle | 32° |

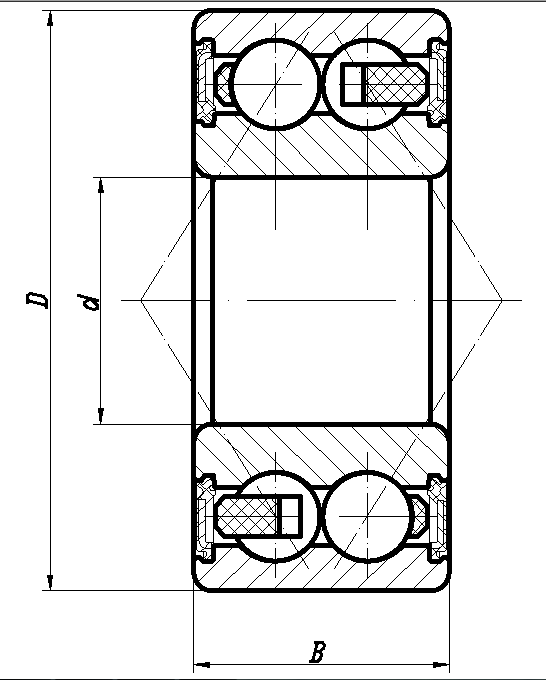

| 序號 | 型號 | 內徑d | 外徑D | 寬度B | 額定載荷 | 極限轉速(r/min) | |
| 動載荷Cr(KN) | 靜載荷Cor(KN) | ||||||
| 1 | 3201 | 12 | 32 | 15.9 | 10.1 | 5.6 | 18000 |
| 2 | 3202 | 15 | 35 | 15.9 | 11.2 | 6.8 | 14000 |
| 3 | 3203 | 17 | 40 | 17.5 | 14.3 | 8.8 | 12000 |
| 4 | 3204 | 20 | 47 | 20.6 | 20 | 12 | 10000 |
| 5 | 3205 | 25 | 52 | 20.6 | 21.6 | 14.3 | 8000 |
| 6 | 3206 | 30 | 62 | 23.8 | 30 | 20.4 | 7000 |
| 7 | 3207 | 35 | 72 | 27 | 40 | 28 | 6000 |
| 8 | 3208 | 40 | 80 | 30.2 | 47.5 | 34 | 5000 |
| 9 | 3209 | 45 | 85 | 30.2 | 51 | 39 | 4500 |
| 10 | 3210 | 50 | 90 | 30.2 | 51 | 39 | 4000 |
| 11 | 3302 | 15 | 42 | 19 | 15.1 | 9.3 | 12000 |
| 12 | 3303 | 17 | 47 | 22.2 | 21.6 | 12.7 | 10000 |
| 13 | 3304 | 20 | 52 | 22.2 | 23.6 | 14.6 | 9000 |
| 14 | 3305 | 25 | 62 | 25.4 | 32 | 20.4 | 8000 |
| 15 | 3306 | 30 | 72 | 30.2 | 41.5 | 27.5 | 7000 |
| 16 | 3307 | 35 | 80 | 34.9 | 52 | 35.5 | 6500 |
| 17 | 3308 | 40 | 90 | 36.5 | 64 | 44 | 6000 |
| 18 | 3309 | 45 | 100 | 39.7 | 75 | 53 | 5500 |
| 19 | 3310 | 50 | 110 | 44.4 | 90 | 64 | 5000 |
